1. New design, much more lighter, stable and safe than the old style.
2. Adopt imported motor,widely compatibility
3. Lower noise
4. Light weight
5. NI-MH battery
6. Autoclavable

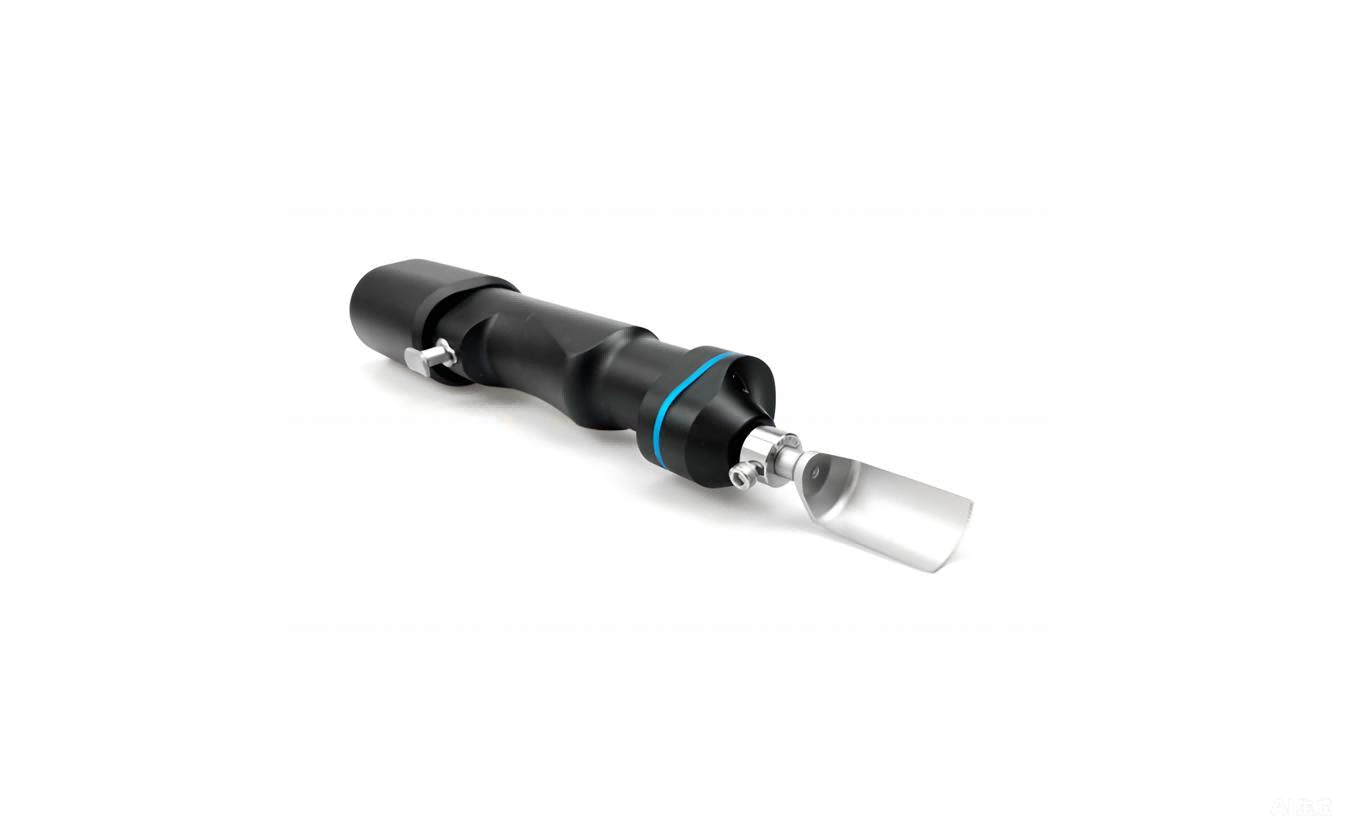

Hand Piece
• Working Voltage: 7.2V
• Output Power: ≥20W
• Unit rise in temperature: ≤25°C
Charger
• Input Power: AC 220V,50Hz
• Output Power: 7.2V,900mA
• Input Power: 30VA
Battery
• Voltage: 7.2V
• Charging time: About 3 hours
Non-loading drill speed: ≥1100r/min
Non-loading oscillating saw frequency: 18000rpm
Non-loading noise: ≤ 75dB(A)
Radial run-out: ≤ 0.5mm

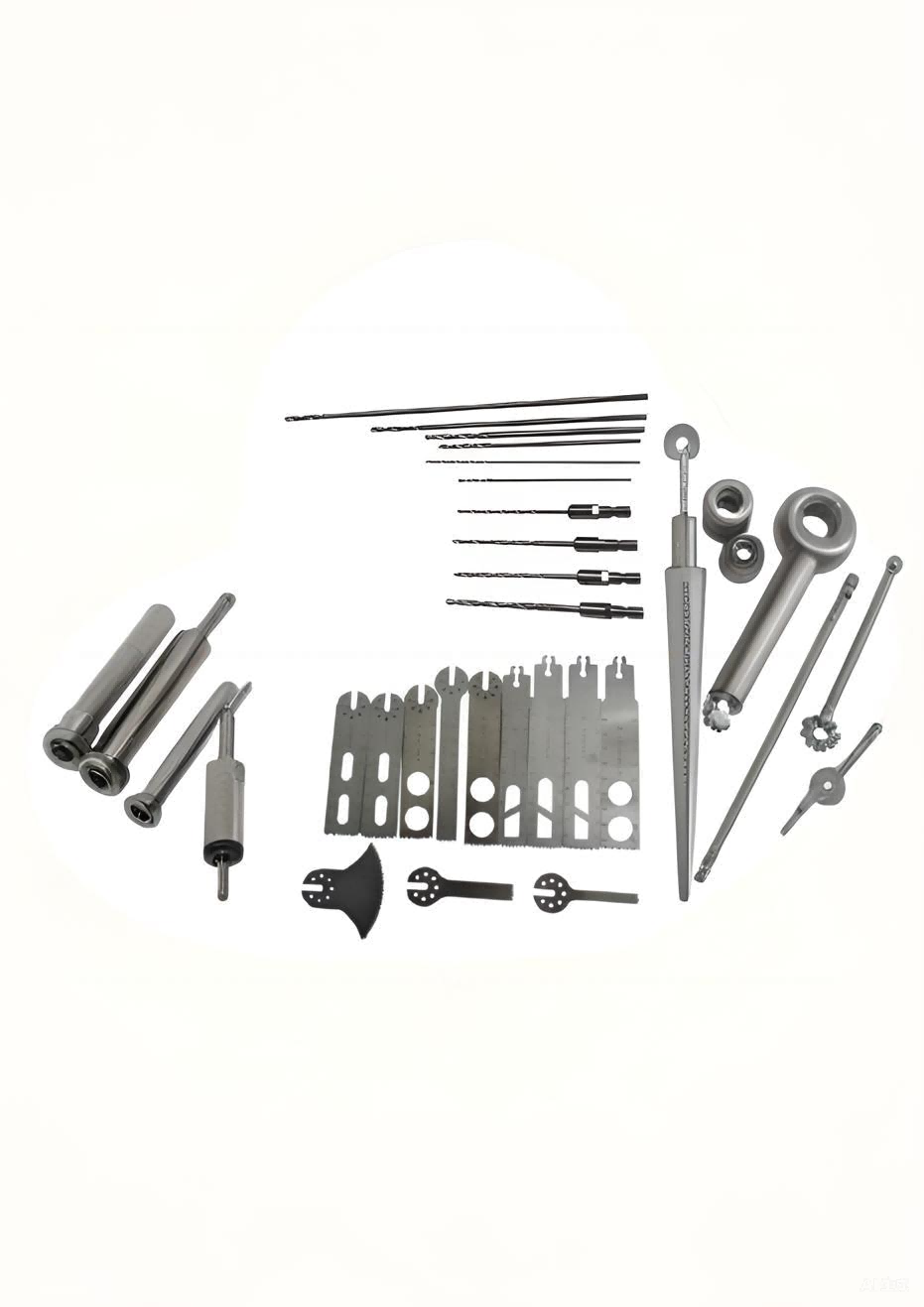

Standard Components
• One hand piece
• One bone drill adapter (canulated)
• One oscillating saw adapter
• One small AO adapter
• One K wire adapter (Optional)
• One charger
• Two 7.2V batteries
• Two aspetic battery transfer rings
• Two oscillating saw blades
• One drill chuck key
• One Aluminum case
RY-DJHJ01
High-strength stainless steel to ensure the intraoperative safety.
Blade thickness and a variety of commonly used knee prosthesis to match with
the template, forming an osteotomy can be the perfect fit prosthesis, bring you
a more accurate and rapid surgical procedures.
Specially designed saw tooth, to ensure that a very small contact pressure to
achieve accurate and neat osteotomy. Thus, greatly reduce the heat generated
when cutting the lead to the risk of osteonecrosis.
• Output power: 130W
• Frequency: 0-16000rpm
• Noise: ≤75dB
• Sterilization temperature: ≤135ºC
• Operation voltage: 12V
• Unit rise in temperature: ≤25ºC
• Charging time: About two hours
• Net weight: 1.5KG
• Radial run-out: ≤0.5MM
• Battery type: NI-MH Battery
• Charging input voltage: AC100-240V; 50/60Hz
• Charging output power: 7.2v-14.4V
Place of Origin: China
