Product Descriptions
Professional mechanical sector ultrasound system
Excellent imaging quality and ergonomic design for
fast and reliable detection;
5.8 inch WVGA LCD monitor, wide viewing angle;
Support USB ultrasound workstation to transfer
images and video;
Support leather sheath, designed to be resistant to
extremely harsh farm conditions;
Software & Report for reproductive system, and
measurement for distance, area, circumference,
volume, angel, heart rate;
Systems Benefits

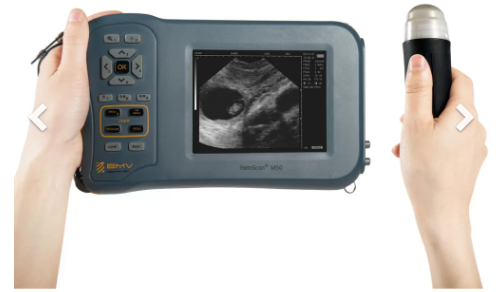

A portable ultrasound scanner for fast and easy detection of pregnancy in small and large livestock.
FarmScan® M50 is a light ultrasound scanner, compact, user friendly, especially designed for small and large farm of sows, Ewes, goats, bovine dairy and bovine beef scanning. Excellent imaging quality and ergonomic design make it fast and reliable detection of pregnancy from 19th day in sows , 28th day on cows, 25th in sheep and goats pregnancy diagnosis, and have exported in many countries all over the world and cooperates with larger farms many countries.
Benefit on pig farm:
FarmScan® M50 can check whether the pig is pregnant or not as well as 18 days after mating, avoiding the waste of non-pregnanet feed. At a rough estimate, this action can directly save about 2000USD feed cost for farm for every 100 head of the sow.
More indirect economic benefits
Increase the litter size;
Enhance productivity ;
Find disease and epidemic situation timely.
Feature
Only weight 0.48 kg;
Excellent imaging quality and ergonomic design for fast and reliable detection 5.8 inch WVGA LCD monitor, wide viewing angle, LCD monitor can turn off when use I-Scan® Video Goggle
Support USB 2.0 for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop and 128 images insider;
5.5~6.5 hours Li-ion battery for operating;
Support leather sheath, designed to be resistant to extremely harsh farm conditions;
Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate;
Portability by a shoulder belt giving you total freedom of movements.Support leather sheath(easy-clean by running water), designed to be resistant to extremely harsh farm conditions;
I-Scan® video glasses eases your job and gets you focused (optional)
Specifications
|
Display
|
5.8 inches Color Transflective TFT
|
|
lmaging modes
|
B,B/B,B/M,M,4LB
|
|
Probe Frenquency
|
2.5Mhz。3.SMhz, 5.OMthz, adjustable
|
|
Display Depth
|
190mm
|
|
Image proce5s
|
image smoothen, histogram, prcudo color
|
|
Size
|
40"250"120mm
|
|
Temperature range
|
-10"C to 40"C/14 "F to 104*F
|
|
Probes
|
Mechanical Sector selectable
|
|
Battery
|
≥ 6 hours per battery
|
|
Image magnification
|
8 levels zoom in
|
|
lmage storage
|
≥150
|
|
lmage control
|
Brightness, contrast ratio
|
|
weight
|
Only 0.48kg with battery and TFT LCD
|
Service and Support
CONFIDENCE WITH EXPERT FACTORY SERVICE
BMV Medical Technical Services & Support offers convenient options to maximize uptime of critical equipment while controlling costs. You deserve the peace of mind that comes with high quality service and support. Service personnel at BMV Medical focus on the needs of the healthcare institutions, so that care providers can focus on the needs of the patients.
Depend on our dedicated product specialists to deliver practical, comprehensive knowledge.
2-year warranty for peace of mind and low total cost of ownership.
Designed in the Taiwan and manufactured in China to meet the high standards of quality control, technical support and customer service that you've come to expect.
The single-board architecture and field replaceable modules make service fast and easy. BMV’s Customer Success Network gives you a Single Point of Entry for custom access to the right people for any situation.
